Order quantity |
Price (net) |
01-09 pcs |
per 30.09 € |
10-24 pcs |
per 29.25 € |
25-49 pcs |
per 28.70 € |
50-99 pcs |
per 28.42 € |
>100 pcs |
per 27.86 € |
Product details
- Epoxy fibre-glass FR41.50 mm
- Double-sided 35 µm Cu
- Plated through holes (PTH)
- Surface chem. Ni/Au with solder stop mask

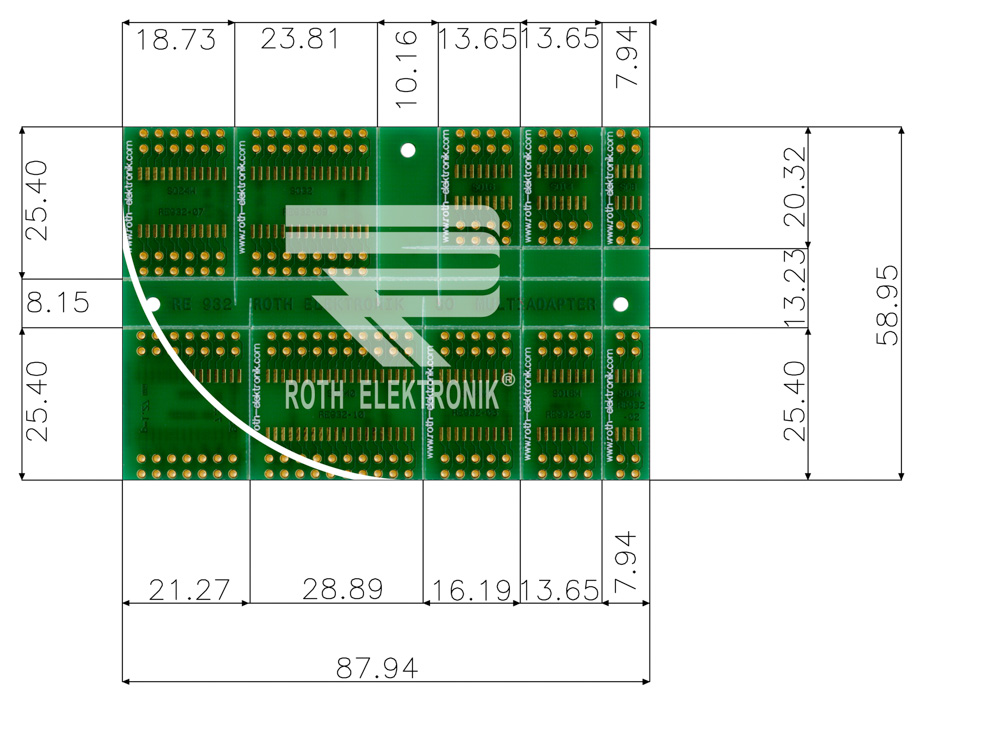

- Adaption circuit board for 10 different SO's
- Pitch: 1.27 mm
- Hole diameter 1.00 mm
- Prescratched rated break point for the separation of individual modules from the board
Module-No. |
Pitch |
mil |
Pin |
Size (mm) |
RE932-01 |
1.270 mm |
0.50 |
8 |
3.90 (153 mil) |
RE932-02 |
1270 mm |
0.50 |
8-w |
7.50 (295 mil) |
RE932-03 |
1.270 mm |
0.50 |
14 |
3.90 (153 mil) |
RE932-04 |
1.270 mm |
0.50 |
16 |
3.90 (153 mil) |
RE932-05 |
1.270 mm |
0.50 |
16-w |
7.50 (295 mil) |
RE932-06 |
1.270 mm |
0.50 |
20-w |
7.50 (295 mil) |
RE932-07 |
1.270 mm |
0.50 |
24-w |
7.50 (295 mil) |
RE932-08 |
1.270 mm |
0.50 |
28-w |
7.50 (295 mil) |
RE932-09 |
1.270 mm |
0.50 |
32 |
7.50 (295 mil) |
RE932-10 |
1.270 mm |
0.50 |
40 (SOJ) |
10.16 (400 mil) |
Key information
All prices are plus statutory VAT ex works.
For further information please refer to our General Terms and Conditions of Business.
Minimum order of 100.00 EUR for delivery.
We supply only trade customers (companies as defined in §14 of the BGB [German Civil Code]), schools, universities and public institutions.
Private Users are asked to approach our distributors.
